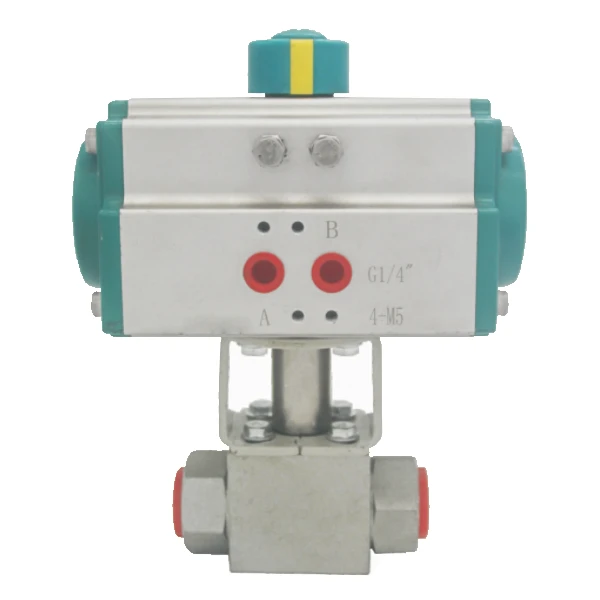

KHB/KHM Hydraulic Ball Valves with Pneumatic Actuators

The KHB/KHM Series Hydraulic Ball Valves with Pneumatic Actuators are designed for automated shut-off and flow control in high-pressure hydraulic systems. Combining a robust ball valve with a reliable pneumatic actuator, they enable fast, precise, and remote operation.

The valve body is made from high-strength steel for excellent durability and resistance to harsh environments. Precision sealing ensures leak-free performance, while the compact design allows easy integration. Ideal for industrial automation, hydraulic power units, and systems requiring efficient pneumatic control.

Get a Quote

​Model Description

Hydraulic Ball Valves with Pneumatic Actuators ​Model Description
  1. Ball valve code: KHB/KHM series pneumatic ball valve
  2. Q: Double-acting pneumatic actuator
  3. H: High-pressure ball valve

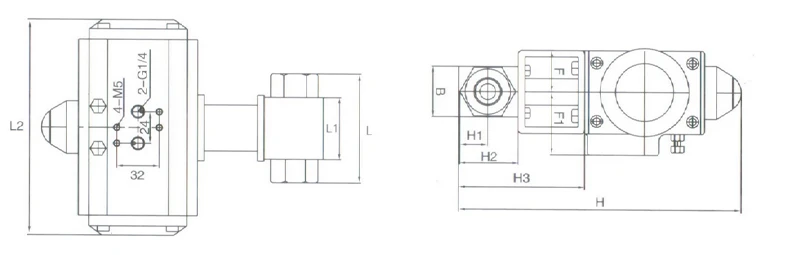

Overall Dimensions

size of Hydraulic Ball Valves with Pneumatic Actuators
ModelDNPNLL1L2BHH1H2H3FF1Model of Actuator
KHB-G1/8-QH4 500 69 37 164 28 169.5 13 32 40 25 42 AT052-DA
KHB-G1/4-QH6 500 69 37 164 28 169.5 13 32 40 25 42 AT052-DA
KHB-G3/8-QH10 500 72 42 181 32 195 17 40 40 35.5 45.5 AT063-DA
KHB-G1/2-QH13 500 83 48 181 35 195 17 40 40 35.5 45.5 AT063-DA
KHB-G1/2-QH16 400 83 47 207 38 222 19 46 50 38.5 52.5 AT075-DA
KHB-G3/4-QH20 315 95 60 212 48 251.5 24 57 60 46 56.2 AT083-DA
KHB-G1-QH25 315 113 65 212 57 258.5 28.5 64 60 46 56.5 AT083-DA
KHB-G11/4-QH25/32315 120 65 212 60 258.5 28.5 64 60 46 56.5 AT083-DA
KHB-G11/2-QH25/32315 130 65 212 60 258.5 28.5 64 60 46 56.5 AT083-DA
KHB-G11/4-QH32 315 110 84 287 82 305.5 41 87.5 60 52 64 AT105-DA
KHB-G11/2-QH40 315 130 91 287 93 317 46.5 99 60 52 64 AT105-DA
KHB-G2-QH60 315 140 100 312.5 110 355 55 11.5 60 60 73.5 AT105-DA
