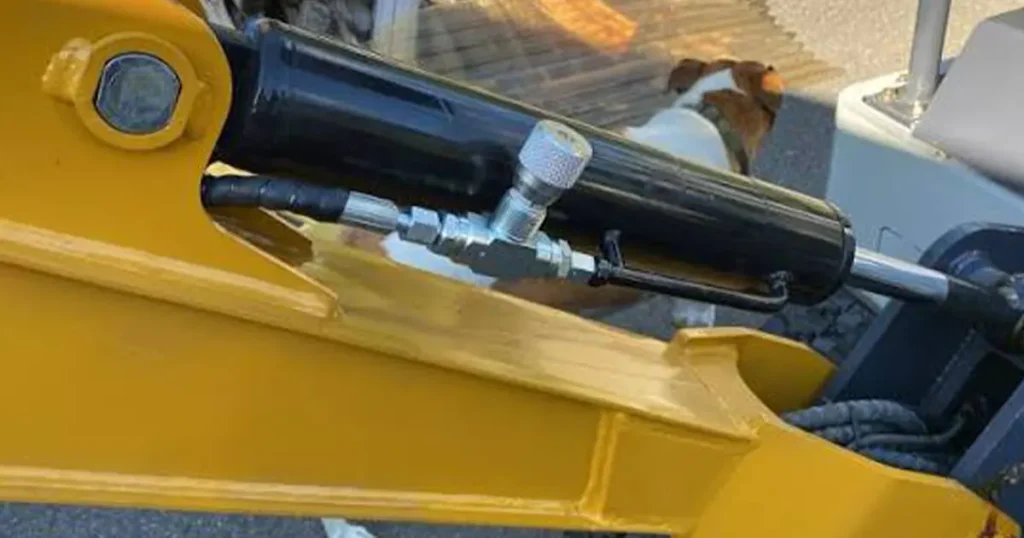

You set the cylinder speed in the morning, and it is wrong again after the oil warms up. Or the actuator runs smoothly with no load, then slows, chatters, or races when the load changes. Those are classic hydraulic flow control valve problems, but the valve itself is only one possible cause.
A flow complaint can start at the pump, relief path, hose, coupler, cylinder, return line, oil, or load. The fastest diagnosis is not another turn of the knob. Record the symptom, measure pressure on both sides of the metering point, verify actual flow and oil temperature, then isolate the component that changes the result.
First identify which kind of flow control you have
Flow control valve can mean several different components. A basic throttle or needle-style restrictor creates an adjustable opening. Its flow changes with the pressure difference across that opening and with oil viscosity. A pressure-compensated flow control adds a compensator intended to maintain a more constant differential across the metering orifice. A one-way design may add a check valve for freer reverse flow. A three-port priority valve sends regulated flow to one branch and excess flow to another.
If you diagnose one type as though it were another, a normal characteristic looks like a fault. A simple throttle is expected to change actuator speed as load pressure changes. A pressure-compensated valve should be checked for its required regulating differential and flow range before you call its speed variation a failed compensator. Official flow-regulator technical information separates simple restrictors, two-way regulators, three-way bypass regulators, and priority designs for exactly this reason.
Use the symptom to choose your first measurement
| What the machine does | Likely areas to check | First useful measurement |
|---|---|---|
| Speed changes as load rises | Non-compensated valve behavior, insufficient compensator differential, pump flow loss, relief path opening, actuator leakage | Pressure before and after the metering orifice while recording actuator speed |
| Speed changes as oil warms | Viscosity change, internal leakage, worn metering surfaces, temperature-sensitive setting | Flow and oil temperature at the same load and valve setting |
| Motion is jerky at low speed | Contamination, air, stick-slip, unstable load, cavitation, damaged needle or compensator | Pressure fluctuation at both actuator ports and a visual oil/air check |
| Actuator remains slow with valve open | Pump delivery, upstream restriction, coupler, hose bore, blocked check path, valve undersizing, cylinder leakage | Flow entering the valve and delta p across the fully open valve |
| Oil temperature rises | Excessive throttling loss, relief flow, undersized valve, blocked return, cooling problem | delta p, flow, relief-line temperature, and tank temperature trend |
| Reverse stroke is slow | Wrong valve orientation, blocked or stuck bypass check, bidirectional restriction fitted by mistake | Pressure drop in both directions at comparable flow |
| Cylinder creeps at rest | Directional-valve leakage, cylinder seal leakage, flow-control check leakage, load-induced pressure | Isolation test that separates the cylinder from the valve path |
Do not collect one gauge reading and call the test complete. Record pump outlet pressure, pressure immediately before and after the flow control, both actuator-port pressures where practical, flow, oil temperature, load condition, and the valve setting. A measurement without the operating state is difficult to compare later.
Note: Before installing gauges, loosening fittings, or removing a valve, lower or mechanically secure loads, isolate stored energy, stop the power source, and verify zero pressure at the work point. A flow control valve is not a load-holding device, and a trapped cylinder chamber can remain pressurized after the pump stops.
The actuator slows when the load increases
For a simple restriction, flow follows the basic relationship:
Q = Cd x A x sqrt(2 x delta p / rho)
Q is flow, Cd is a discharge coefficient, A is the effective opening, delta p is pressure difference across the opening, and rho is fluid density. You do not need to calculate Cd in the field to use the relationship. If the load increases and reduces the available delta p across a meter-in restriction, flow falls and the actuator slows even though the adjustment has not moved.
A pressure-compensated valve tries to hold the metering differential more nearly constant. It still needs enough inlet pressure above the load pressure to operate its compensator. If that margin disappears, the valve falls out of regulation and speed drops. Check the model’s minimum control differential, regulated flow range, and test conditions rather than assuming pressure-compensated means independent of every pressure.
Also watch the pump and relief path. A worn pump may deliver the no-load flow but lose output under pressure. A low relief setting or another function opening can divert flow before it reaches the valve. The knob cannot recover oil that never arrives.
Speed drifts as the oil temperature changes
Cold oil is more viscous, so it needs more pressure to pass through a small opening. As the machine warms, pressure loss through the same path changes and internal leakage can increase. With a non-compensated valve, cylinder or motor speed may therefore move away from the cold setting.
Do not adjust the valve at an unknown temperature and expect repeatable results. Establish a normal test condition: same oil temperature, load, pump speed, valve direction, and actuator stroke. If speed still drifts under those controls, compare actual flow and inspect for worn metering surfaces, a sticking compensator, or leakage elsewhere.
Official hydraulic service guidance commonly treats fluid temperature, viscosity, and contamination as connected diagnostic variables. One manufacturer service manual, for example, directs technicians to check temperature, viscosity, contamination, spool wear, and orientation rather than replacing the pressure-control element blindly. Use the same measurement discipline around your flow-control circuit.
Jerky motion usually needs more than an adjustment
At low speed, a tiny change in opening or friction can produce a noticeable change in actuator motion. Dirt can catch a needle, check element, or compensator. Air makes the hydraulic volume compressible. Cylinder seal friction can hold motion until pressure builds, then release suddenly. An overrunning load can pull the actuator faster than the inlet flow can fill it.
Start with what you can observe without disassembly:
- Does the motion improve after the oil warms, or get worse?
- Does the pressure rise smoothly or oscillate before the actuator jumps?
- Is the reservoir oil foamy, cloudy, or low?
- Did the problem begin after a hose, filter, pump, or attachment change?
- Does the symptom occur in one direction or both?
- Does it remain when the load is removed?
If the pressure at the valve inlet is steady but the outlet pressure and motion jump together, inspect the metering and check functions. If inlet pressure and flow also collapse, move upstream to the pump, suction path, relief valve, or another active function. If pressures are stable while motion sticks, the cylinder, motor, linkage, or load may be the better suspect.
The actuator stays slow even with the valve fully open
Opening the adjustment does not guarantee an unrestricted path. The selected valve may have a small bore, the bypass check may be installed in the wrong direction, or a damaged element may not reach full travel. A quick coupler, kinked hose, clogged filter, or partly shifted directional spool can add a second restriction.
Measure flow entering the valve and delta p across it at the fully open setting. High delta p points toward valve size, internal restriction, orientation, or damage. Low inlet flow points upstream. If inlet flow is correct and valve delta p is low, compare cylinder travel time with calculated displacement and check actuator leakage or mechanical resistance.
The flow control valve circuit diagrams help you identify where the metering point sits, but use the actual machine schematic and port markings before moving a line.
The actuator moves too fast or will not stay controlled
First check whether someone opened the valve, the lock moved, or a bypass path is stuck open. Then look at the load. A gravity-driven or externally driven cylinder can run ahead of pump flow. Meter-in restriction may slow the oil entering, yet the load pulls the actuator faster and creates a low-pressure void on the inlet side.
Meter-out control can create back pressure that resists an overrunning load, but it also raises pressure in the outlet chamber. Because the piston areas differ, rod-end pressure can exceed the supply-side pressure during extension. Check the maximum possible pressure at the cylinder port, valve, hose, and fittings, not just the pump relief setting.
If a falling load can injure someone or damage equipment, do not use a throttle or ordinary flow control as the sole safety device. Evaluate a suitable load-control arrangement for the complete machine.
Reverse flow is unexpectedly restricted
A one-way flow control normally meters one direction and uses a check path for freer flow in reverse. Install it backward and the machine controls the opposite stroke. Fit a bidirectional restrictor and both strokes are metered. Debris or a damaged spring can also keep the reverse check from opening fully.
Compare the symbol and arrow with the real port connections, then measure delta p in each direction. The hydraulic speed control valve selection should state whether you need controlled flow in one direction, both directions, or a separate free-return path.
Excess heat means pressure is being spent without useful work
Every restriction converts part of the hydraulic power into heat. For a steady liquid flow, a useful estimate is:
Power loss (kW) = delta p (bar) x Q (L/min) / 600
If 35 L/min crosses the valve at a 12 bar drop, about 0.70 kW becomes heat. That may be acceptable for brief duty and excessive for continuous operation. Now check whether the pump’s unused flow is also crossing the relief valve; that loss can be much larger than the metering loss.
High temperature after an adjustment usually calls for four checks: delta p across the flow control, actual metered flow, flow over the relief path, and cooler performance. A larger valve may reduce unwanted loss when fully open, but it will not fix a circuit that intentionally throttles most pump flow all day. You may need a different pump or flow-control architecture.
Noise can point to cavitation, aeration, or a high-velocity jet
A sharp hiss at a restricted opening can be normal, but a new crackling or gravel-like sound needs attention. Excessive pressure drop can lower local pressure enough to form vapor cavities. Air entering through the suction side or returning as foam can make motion spongy and noisy. A high-velocity jet can also excite a thin line or damaged valve part.
Check reservoir level and appearance, suction restrictions, inlet vacuum if available, oil temperature, pressure immediately downstream of the restriction, and return-line back pressure. Do not diagnose cavitation from sound alone. Air, mechanical vibration, a relief valve, and a loose line can sound similar.
Leakage and cylinder creep may come through another path
External oil around the adjustment stem or body is a valve leak until you prove otherwise. Clean the area, depressurize safely, then find the exact source. Internal creep is less direct. Oil can bypass the flow-control check, directional valve, cylinder piston seal, or another manifold passage.
Use an isolation test that separates those paths without exposing anyone to a moving load. Record pressure decay, temperature, load, time, and port condition. A bench test can compare the removed valve against a defined leakage or flow requirement, but the test pressure and fluid must match the claim you are making. General hydraulic valve testing should never be reduced to a pressure-hold result proves the valve is good.
A practical diagnostic sequence
- Make the machine safe. Lower or support loads, isolate power, release stored pressure, and follow the equipment procedure.
- Define one repeatable symptom. Record direction, load, oil temperature, pump speed, commanded speed, actual speed, and when the problem began.
- Confirm the valve type and orientation. Read the symbol, model, port markings, flow arrow, and whether a reverse check or compensator is present.
- Inspect before adjusting. Look for external leaks, a loose lock, damaged knob, crushed hose, wrong coupler, contaminated oil, and signs of overheating.
- Measure supply flow and pressure. Verify that the pump can deliver under the same load that produces the complaint.
- Measure both sides of the valve. Calculate delta p and compare it at cold and warm conditions, both directions, and several loads.
- Separate valve behavior from actuator behavior. Use a safe isolation or substitution test designed for the machine.
- Inspect or bench-test only after the circuit points to the valve. Keep parts clean and use the model’s service instructions.
- Correct the cause. Clean, repair, resize, reorient, change the control method, or fix the upstream/downstream component.
- Retest and record a baseline. Save final setting, flow, pressures, oil temperature, cycle time, and load.
When you adjust a functioning valve, change one variable at a time and use the procedure in how to adjust a hydraulic flow control valve. Repeated blind adjustment destroys your original baseline and can push the circuit into a higher heat or pressure condition.
Clean, repair, replace, or redesign?
| Finding | Likely action | What to verify afterward |
|---|---|---|
| Debris in an otherwise undamaged metering or check element | Clean according to the service procedure and correct the contamination source | Flow stability, filter condition, cleanliness, and repeat failure risk |
| Worn needle, seat, compensator, or damaged body | Repair with approved parts or replace the valve | Leakage, adjustment range, pressure drop, and safe operation |
| High fully open delta p at required flow | Recheck valve size and internal flow path | Peak port flow, viscosity, line velocity, and heat |
| Speed changes normally with load on a simple throttle | Use pressure compensation if the process requires stable speed | Minimum regulating differential and excess-flow path |
| Overrunning load cannot be controlled safely | Review the complete load-control circuit | Maximum cylinder-port pressure, cavitation risk, and safety function |
Replacing the valve without fixing contamination, a restricted return, wrong orientation, or failing pump only resets the clock. The same symptom will return because the same circuit condition remains.
Frequently asked questions
Why does my hydraulic cylinder speed change with the same valve setting?
The pressure difference across a simple restriction may have changed because of load, pump pressure, return back pressure, or another function. Oil viscosity and internal leakage also change with temperature. Measure flow, delta p, temperature, and load at the same time.
Can a dirty hydraulic flow control valve be cleaned?
Some designs can be serviced, but cleaning must follow the exact product procedure in a controlled clean area. If the metering edge, seat, spool, bore, or seal is damaged, cleaning is not a repair. Correct the source of contamination before the valve returns to service.
Why does closing the flow control valve make the system hot?
Closing the valve increases pressure drop across the restriction. That pressure drop multiplied by flow is hydraulic power converted to heat. The restriction may also drive more pump flow across the relief valve, adding another heat source.
Why is one cylinder direction slow but the other is normal?
Check valve orientation, a blocked reverse-flow check, different cylinder area and return flow, meter-in versus meter-out placement, and mechanical load direction. One-way flow controls are designed to behave differently in the two directions.
Does a pressure-compensated flow control keep speed perfectly constant?
No component is independent of all conditions. The valve must operate inside its specified flow, pressure, temperature, viscosity, and contamination limits and needs the required differential pressure to regulate. Pump shortage, actuator leakage, and out-of-range load conditions still affect speed.
How do I know whether the valve is undersized?
Measure delta p across the fully open valve at the highest actual port flow and operating viscosity. If that drop consumes too much pressure or creates excessive heat, compare the result with the exact model curve and check the surrounding line for other restrictions.
For a replacement or new hydraulic flow control valve, provide the circuit diagram, controlled direction, reverse-flow requirement, minimum and maximum flow, pressure readings on both sides, working and peak pressure, oil and temperature range, port standard, and the symptom that appeared first. That information is far more useful than the number of turns on the old knob.
