A valve can survive a pressure hold and still give you cylinder drift, excessive heat, or unreliable motion in the machine. That is because a pressure-boundary test answers only one question: does the body contain pressure? It does not tell you whether the seat leaks, the open valve wastes energy, or the moving element responds correctly.
There is no single test that proves a hydraulic valve is suitable for your circuit. Start with the job the valve must do, then define the operating pressure, flow, fluid temperature, direction, and acceptable result. Once those conditions are written down, you can choose tests that produce evidence you can actually use.
Start with the claim you need to prove
Before you connect the valve, decide what the result must help you approve. If you are releasing a production batch, you may need repeatable pass/fail checks. If you are investigating slow cylinder movement, you need pressure-drop and flow data. If the load drifts, you need reverse-leakage data at the pressure direction and temperature the circuit actually sees.
| Question | Relevant test | Typical output |
|---|---|---|
| Will the body and joints contain pressure? | Pressure-boundary or proof test | Test pressure, hold time, visible leakage and permanent deformation |
| Will a closed valve isolate the line? | Internal or seat-leakage test | Leakage rate at defined pressure, direction, temperature and viscosity |
| How much energy does the valve consume? | Pressure-drop versus flow test | Δp–Q curve at stated fluid temperature and viscosity |
| When does a check valve open? | Cracking and reseating test | Opening pressure, flow condition, reseating behavior and reverse leakage |
| Can the valve complete its intended action? | Functional test | Open/close/shift response, operating force or torque and repeatability |
| Does a metering valve regulate predictably? | Metering-characteristic test | Flow versus adjustment position and pressure differential |
| Will performance remain stable? | Endurance or cycle test | Duty profile, cycles and before/after performance change |
The main hydraulic valve tests
1. Pressure-boundary and proof testing
This test pressurizes the contained volume to confirm that the body, closures, plugs and external joints can withstand a defined pressure without unacceptable leakage or damage. The pressure multiplier and hold time must come from the applicable product specification, drawing, customer requirement or approved procedure. Do not borrow a multiplier from another valve class just because it sounds conservative.
Note: Compressed air stores far more energy than hydraulic oil. An improvised pneumatic proof test is not a safe substitute for a controlled hydraulic test.
2. External leakage testing
Tip: Treat a no-visible-leak result as incomplete unless it also states pressure, fluid, temperature, hold time, and the observation method. A quick look at low pressure cannot support a high-pressure acceptance decision.
3. Internal or seat-leakage testing
When your actuator drifts but you cannot see an external oil leak, internal leakage is one of the first things to measure. In a shut-off ball valve, oil may pass through the closed bore. In a check valve, it may leak backward after the ball or poppet seats. A spool valve normally has designed clearance leakage, so zero leakage is not a sensible universal requirement.
State the pressure direction because a valve can seal differently from opposite sides. State the fluid and temperature too. Leakage through a small clearance is viscosity-sensitive, and viscosity changes with temperature. A leakage number without those conditions is hard to compare.
4. Pressure drop versus flow
If the valve runs hot or the actuator is slower than expected, measure pressure on both sides of the valve at the actual flow. One convenient data point can hide a restriction that becomes serious near peak flow. A pressure-drop-versus-flow curve shows whether the bore, ports, and internal passages are suitable across the range your machine will use.
Hydraulic power loss is approximately pressure drop × flow. In SI units, Power loss (kW) ≈ Δp (bar) × Q (L/min) ÷ 600. For example, a valve that drops 8 bar at 60 L/min turns about 0.8 kW into heat. That is why matching the thread size is not enough; you also need the pressure-drop curve at your working flow.
5. Functional and operating-effort testing
Operate the valve in every state it will use while the specified ports are under pressure. If a manual ball valve feels too heavy in service, record breakaway and running torque instead of writing only that it operates normally. If you use an actuator, verify that its available torque or force is sufficient at the worst pressure condition and that the valve reaches the required fail position.
Repeat the test. One successful movement does not show whether the valve sticks intermittently, changes after warm-up or behaves differently near the pressure limit.
6. Check-valve cracking and reseating
If you are checking whether a spring-loaded check valve opens at the right point, measure cracking pressure separately from full-flow pressure drop. Cracking pressure is the differential at first opening. Once flow rises, spring and flow forces change the differential. You therefore need three separate answers: when the valve first opens, how much pressure it loses at working flow, and how well it seals after flow stops.
When the circuit is sensitive to drift or load holding, include reverse leakage at the real pressure direction and a suitable stabilization time. For safety-critical load holding, you may need a purpose-designed load-control valve rather than assuming any general check valve is sufficient.
7. Throttle and flow-control characterization
For an adjustable restriction, test several knob positions and more than one pressure differential. If your cylinder speed changes as the load changes, this test helps you separate normal throttle behavior from a valve problem. A basic throttle responds to pressure differential; a pressure-compensated valve is designed to reduce that variation within its stated range. One setting at one load cannot show the difference.
Record whether you tested the metered direction, the free-flow direction or both. One-way throttle valves combine a restriction with a check path, so the two directions are intentionally different.

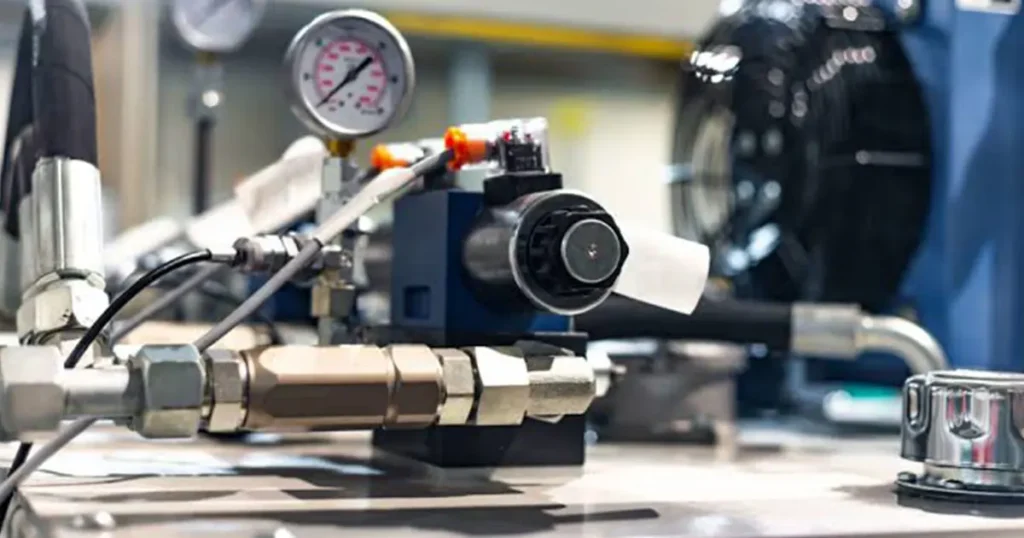

What a useful test stand needs
Your test stand does not need unnecessary complexity, but every item must support the decision you are making. At minimum, use a clean reservoir, pump, correctly set pressure limiter, filtration, temperature monitoring, calibrated pressure and flow instruments, controlled loading, and safe containment around the valve. Add back-pressure, leakage, torque, position, or data-logging measurement only when the test requires it.
| Variable | Why it matters | What to record |
| Fluid | Compatibility and viscosity affect sealing and flow | Type and grade |
| Temperature | Changes viscosity and component clearances | Fluid temperature at each reading |
| Cleanliness | Particles can damage seats or jam close-clearance parts | Filtration condition or cleanliness requirement |
| Pressure | Defines stress, force and leakage condition | Upstream, downstream and differential pressure |
| Flow | Drives pressure drop and flow forces | Actual stabilized flow |
| Direction and position | Many valves are asymmetric | Port connections, direction and commanded state |
| Time | Transient spikes and stabilized values differ | Ramp, stabilization and hold time |
Write the test procedure before connecting the valve
- Identify the valve. Record part number, drawing revision, size, pressure rating, seal material and batch reference.
- Define the purpose. Choose pressure integrity, leakage, flow, function, endurance or a combination.
- Set the conditions. Specify fluid, temperature, direction, flow, mounting and actuation input.
- Define acceptance first. Write numerical limits or an unambiguous visual criterion before seeing the result.
- Confirm instrument range and calibration. A 400-bar gauge is a poor tool for resolving a 0.3-bar cracking pressure.
- Clean and flush the circuit. A dirty test stand can create the failure it reports.
- Stabilize each point. Increase pressure gradually and record temperature with the reading.
- Inspect after depressurization. Check for deformation, damaged seals, loose plugs and changed operating effort.
Which standards are relevant?
| Reference | Relevant scope |
| ISO 6403:1988 | Test methods for hydraulic valves controlling flow and pressure. ISO lists the published edition while a replacement project is under development, so confirm the contract edition. |
| ISO 4411:2019 | Methods for determining pressure differential and flow characteristics. |
| SAE J747_202310 | Control-valve procedures for flow versus pressure drop, leakage, operating effort, metering and relief characteristics. |
| ISO 4406:2021 | Code for expressing solid-particle contamination levels. |
| ISO 4413 | General rules and safety requirements for hydraulic systems and components. |
Use a standard to agree on how the test is performed, but do not assume it supplies the correct acceptance limit for your valve. You still need the product specification, drawing, application requirement, or inspection plan to define what result is acceptable.
Common testing mistakes
Reporting a pass result without conditions
Tip: If a report says only passed, ask for the actual pressure, hold time, oil temperature, flow direction, acceptance limit, and measured result. Those conditions tell you whether the test represents your circuit.
Using water, oil and air as if they were interchangeable
They are not. Viscosity affects leakage and flow, water can create compatibility or corrosion concerns, and compressed gas changes the stored-energy hazard. Use the specified medium and a procedure designed for it.
Ignoring instrument resolution
Calibration alone does not make an instrument suitable. Select a range that resolves the value you need, especially for low cracking pressures and small leakage rates.
Testing on a contaminated rig
A particle on a check-valve seat can create a false failure. Repeated cycling may then scratch the sealing surface. Control cleanliness before, during and after the test.
Confusing rated, proof and burst pressure
These values answer different questions. Never improvise a proof or burst level from the catalog rating. Use the approved requirement and appropriate guarding.
What a useful test report contains
- Valve identification, drawing revision, quantity and batch or serial reference
- Test procedure and referenced standard, including edition
- Test circuit or clear port-connection diagram
- Fluid, temperature and cleanliness condition
- Instrument IDs, ranges and calibration status
- Pressure, flow, direction, valve position, ramp and hold time
- Acceptance criteria and measured results—not only pass/fail
- Leakage location and rate where applicable
- Before/after observations and deviations
- Date, operator and traceable valve identification
Testing Chenyang hydraulic valves
Chenyang’s manufacturing process includes body machining, assembly, seal installation, and pressure testing. When you source a valve, do not stop at the phrase pressure tested. Ask which checks are performed on the exact model: pressure boundary, external leakage, internal leakage, functional operation, or an agreed combination.
That distinction matters when you compare a high-pressure hydraulic ball valve, a hydraulic check valve and a hydraulic flow-control valve. Their pass criteria should reflect different functions.
Questions to send with your RFQ
- What working pressure, fluid, temperature and flow will the valve see?
- Which direction must seal, and what leakage is acceptable?
- Do you need a pressure-drop curve or only a nominal flow rating?
- For a check valve, what cracking pressure and reverse-leakage condition apply?
- For a throttle valve, which settings and pressure differentials should be tested?
- Do you need individual reports, batch reports or raw measurement data?
- Which standard, edition and customer-specific limits belong on the order?
FAQ
What is hydraulic valve testing?
It is a group of controlled tests used to verify pressure containment, leakage, pressure drop, opening or shifting behavior, metering and durability. The required group depends on valve function.
Is a pressure test the same as a leakage test?
No. A pressure-boundary test checks external containment. An internal leakage test measures flow across a closed control element. A valve can pass one and fail the other.
Why record fluid temperature?
Temperature changes viscosity, which changes leakage through clearances and pressure loss through small passages. Results taken at different temperatures may not be comparable.
What should a check-valve test include?
Define forward-flow pressure drop, cracking behavior, reverse pressure and acceptable reverse leakage. Depending on the application, also check reseating and endurance.
Can I use a process-valve leakage standard?
Only when the contract and design specifically require it. Hydraulic fluid-power valves have different functions and test circuits, so use methods that match the component.
