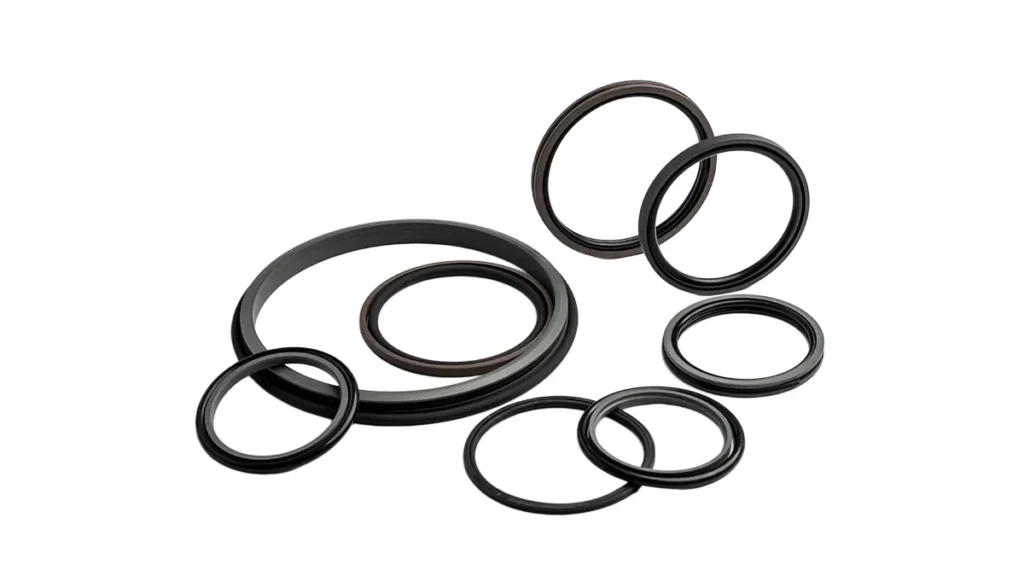

When you look at nbr vs fkm seals for hydraulic ball valves, you spot some clear differences right away. NBR seals cost less and work well with oil at normal temperatures. You often find them in everyday hydraulic systems. FKM seals handle much higher heat and tough chemicals. NBR gets soft above 100°C, while FKM keeps working near 200°C. If your system faces heat or harsh fluids, you might turn to an FKM seal. NBR works best for standard jobs.
Key Takeaways
- NBR seals are cheap and good for normal jobs. They work well with oil and fuel at regular temperatures.
- FKM seals, called Viton, work great in high heat. They are best for tough jobs with strong chemicals.
- NBR works in temperatures from -30ºC to 100ºC. FKM can handle -20ºC to 210ºC.
- Pick NBR if you want more flexibility and lower price. Choose FKM if you need strong and chemical-proof seals.
- Always pick the right seal for your fluids and system. This helps your system work its best.
- Check your seals often and install them the right way. This can help both NBR and FKM seals last longer.
- NBR seals can get bigger or break with strong acids or polar solvents. FKM seals can handle more chemicals better.
- Think about the long-term costs and benefits before you choose. FKM costs more but usually lasts longer and works better.
NBR vs FKM Seals: Material Overview
What is NBR?
You might hear people call NBR by its full name, nitrile butadiene rubber. This seal material stands out because it handles oil and fuel well. NBR comes from a mix of acrylonitrile and butadiene. You get a rubber that feels soft and flexible. Many people like NBR because it works in temperatures from -30ºC up to 100ºC. You can bend it, stretch it, and it bounces back. NBR does not cost much, so you see it in lots of everyday machines. When you need a seal that can handle oil but not extreme heat, NBR is a smart pick. It is not as heavy as some other rubbers, with a density of about 1000 kg/m³. You will notice that NBR does not do well with harsh chemicals or ozone. Still, for most hydraulic ball valves, NBR gets the job done.
What is FKM (Viton)?
FKM, also known as Viton, belongs to the family of fluorocarbon and fluoroelastomer materials. You might see the name Viton used a lot, but it means the same thing as FKM. This seal material comes from a mix of fluorine, carbon, and hydrogen atoms. FKM feels stiffer than NBR, but it brings some big benefits. You can use FKM in places where the temperature gets as low as -20ºC or as high as 210ºC. That is a huge range! FKM stands up to harsh chemicals, ozone, and even strong acids. It has a higher density, about 1850 kg/m³, so it feels heavier in your hand. When you need a seal that will not break down in tough spots, FKM is the answer. Viton is a type of fluorocarbon, and you will see it used when regular rubbers just cannot keep up. FKM is not as flexible as NBR, but it lasts longer in extreme conditions. You might pay more for FKM, but you get a seal that can handle almost anything.
Tip: If you see the word Viton, remember it is just another name for FKM. Both belong to the fluorocarbon and fluoroelastomer materials group.
Common Uses in Hydraulic Ball Valves
You will find both NBR and FKM seals in hydraulic ball valves, but they fit different jobs. NBR works best when you need a seal for oil, fuel, or water at normal temperatures. You might use NBR in farm equipment, trucks, or factory machines. FKM, or Viton, steps in when things get tough. If your system faces high heat, strong chemicals, or ozone, you want FKM. Many people pick Viton for chemical plants, oil refineries, or places with lots of heat. Both NBR and FKM belong to the group of seal materials that keep leaks away, but they do it in their own way.
Here is a quick look at how NBR and FKM compare:
| Property | NBR (Nitrile Butadiene Rubber) | FKM (Viton) |
|---|---|---|
| Density | 1000 kg/m³ | 1850 kg/m³ |
| Temperature Range | -30ºC to 100ºC | -20ºC to 210ºC |
| Chemical Resistance | Good with oils and fuels | Excellent with harsh chemicals and ozone |
| Flexibility | More pliable | Stiffer and less flexible |
| Durability | Good for long-term use | Highly durable in extremes |
When you compare nbr vs fkm seals, you see that each one has a place in the world of hydraulic ball valves. NBR gives you a low-cost, flexible choice for normal jobs. FKM, or Viton, gives you a tough, long-lasting seal for the hardest jobs. Both fluorocarbon and fluoroelastomer materials play a big part in keeping your systems running. You might also hear about ffkm, which is a special type of fluorocarbon that handles even more extreme conditions. FKM and ffkm both belong to the same family, but ffkm takes things a step further. When you pick a seal material, think about what your system needs most—flexibility, chemical resistance, or the ability to handle heat. That way, you get the right fit every time.
NBR vs FKM Seals: Differences
Chemical Resistance
When you look at nbr vs fkm seals, you see a big difference in chemical resistance. NBR protects well against oils and fuels. It also works with some weak chemicals. NBR can handle aliphatic hydrocarbons and weak acids or alkalis if it is not too hot. But NBR does not last with strong acids or polar solvents. It also does not do well with aromatic hydrocarbons. If you use NBR with these, it might swell or stop working.
FKM is better when you need more chemical resistance. FKM stands up to many acids, bases, and solvents. It also resists strong chemicals and ozone. This makes FKM a good choice for hard jobs. But FKM does not like ketones, hot hydrofluoric acids, or amines. If you work with harsh fluids or in a chemical plant, FKM gives you better sealing.
Here’s a quick table to help you see the difference:
| Material | Recommended For | Not Recommended For |
|---|---|---|
| NBR | Aliphatic hydrocarbons, dilute acids, alkalis at low temperatures | Strong acids, polar solvents, aromatic hydrocarbons |
| FKM | Wide range of acids, bases, solvents, petroleum oils | Ketones, hot hydrofluoric acids, amines |
Tip: Always check the chemicals in your system before you pick a seal. The right seal lasts longer and works better.
Temperature Range
Temperature is important for sealing. NBR works best from -40°C to 100°C. Some special NBR can go up to 120°C. But if it gets hotter, NBR can get soft or stop sealing well.
FKM is great for high heat. You can use FKM from -40°C to 200°C. This means FKM works even when it gets very hot. FKM keeps its shape and does not leak when the temperature goes up.
Here’s a table to show you the temperature range for both:
| Seal Type | Minimum Temperature | Maximum Temperature |
|---|---|---|
| NBR | -40°C | +100°C |
| FKM | -40°C | +200°C |
If your system gets very hot or cold, FKM is better. NBR is good for normal jobs, but FKM is best for extreme heat.
Oil and Fuel Resistance
Oil and fuel resistance is important for hydraulic ball valves. NBR works well with most oils and fuels. It handles mineral oils and fuels without problems. NBR may swell if you use it with polar solvents. But for most hydraulic oils, NBR works fine.
FKM is even better with oil and fuel. It works at high temperatures and with strong chemicals in many oils and fuels. FKM does not swell much, even after a long time. This means FKM keeps sealing and does not leak.
Here’s a table to help you compare:
| Elastomer | Fluid Compatibility | Swelling Response | Application Suitability |
|---|---|---|---|
| NBR | Good with petroleum-based fluids, may swell in polar solvents | Moderate swelling | Common in hydraulic systems with mineral oil-based fluids |
| FKM | Superior resistance to high temperatures and aggressive chemicals, less effective in amine-based fluids | Low swelling | Ideal for aerospace and high-performance applications |
If you want a seal that lasts and keeps its shape, FKM is best. NBR is good for most jobs, but FKM works better in tough places.
Note: Always match your seal to the fluids in your system. The right seal means better performance and fewer problems later.
Flexibility and Hardness
When you compare nbr vs fkm seals, you notice how each material feels and moves. Flexibility matters when you need a seal to fit tightly and move with your hydraulic ball valve. NBR stands out for its soft and stretchy feel. You can bend it, twist it, and it snaps back into shape. This makes nbr a favorite for jobs where you need a seal that can handle movement or vibration.
FKM feels a bit different in your hand. It is tougher and less flexible than nbr. You might notice that fkm does not stretch as much. This stiffer feel helps fkm keep its shape in high-pressure or high-temperature spots. Even though fkm is not as bendy, it still works well for many hydraulic systems.
Both nbr and fkm come in a wide range of hardness levels. You measure hardness using the Shore A scale. Here is a quick look at how they compare:
| Material | Hardness Range (Shore A) |
|---|---|
| NBR | 40-95 |
| FKM | 40-95 |
You can pick a soft nbr seal for easy installation or a harder fkm seal for tough jobs. The right hardness depends on what your system needs. If you want a seal that bends and flexes, nbr is a good choice. If you need a seal that stays firm under pressure, fkm is the way to go.
Tip: Always check the hardness rating before you buy. The wrong hardness can cause leaks or make installation hard.
Compression Set & Longevity
Compression set tells you how well a seal bounces back after being squeezed. If a seal stays flat or loses its shape, it can start to leak. NBR does a good job in most everyday uses. It holds its shape and keeps sealing for a long time if you use it at normal temperatures.
FKM takes things further. It resists flattening even when you use it in hot or harsh places. FKM keeps its shape better than nbr when things get tough. This means fkm seals last longer in extreme heat or with strong chemicals. You do not have to change fkm seals as often, which saves you time and money.
If you want a seal that lasts for years, fkm is a smart pick. NBR works well for standard jobs, but it may wear out faster if you push it too hard.
Note: If your system runs hot or faces strong chemicals, choose fkm for better longevity.
Permeability
Permeability means how much gas or fluid can pass through a seal. You want a seal that keeps oil, air, or chemicals from leaking out. NBR does a good job blocking most fluids, but it can let some gases slip through over time. This is usually not a problem in most hydraulic ball valves.
FKM offers even better protection. It blocks gases and fluids more than nbr. This makes fkm a top choice for systems where leaks are a big concern. If you work with special gases or need a super-tight seal, fkm gives you extra peace of mind.
You can trust nbr for most jobs, but fkm is the best when you need the lowest permeability.
Tip: For high-pressure or gas systems, pick fkm to keep leaks away.
Cost
You probably want to know how much you will spend on seals for your hydraulic ball valves. Cost matters, especially if you need to buy a lot of seals or if you have a tight budget. When you look at nbr vs fkm seals, you see a big difference in price.
NBR seals cost less. You can buy more nbr seals for the same money you would spend on just a few fkm seals. This makes nbr a smart choice for standard jobs or when you need to keep costs low. Many factories and repair shops pick nbr because it works well and does not break the bank.
Why does nbr cost less? The answer is simple. NBR comes from common materials. It is easy to make. You do not need special tools or chemicals to produce nbr. This keeps the price down. You can use nbr in many places without worrying about your budget.
FKM seals cost more. You pay a premium for fkm because it uses special chemicals and needs extra steps to make. FKM stands up to heat, chemicals, and tough jobs. You get more performance, but you also pay more. If you need a seal that lasts longer and works in harsh places, fkm is worth the extra money.
Here’s a quick table to help you compare:
| Seal Type | Average Cost | Why Choose? |
|---|---|---|
| NBR | Low | Budget-friendly, everyday use |
| FKM | High | Extreme conditions, long life |
You might wonder if the higher price for fkm is worth it. Think about your system. If you use your hydraulic ball valve in normal temperatures and with regular oils, nbr will save you money. If you face high heat, strong chemicals, or need a seal that lasts for years, fkm is a better investment.
Tip: Always match the seal to your job. Paying more for fkm makes sense if you need top performance. For most jobs, nbr gives you great value.
You can ask your supplier for prices before you buy. Some suppliers offer discounts if you buy a lot of nbr seals. FKM usually costs the same everywhere because it is harder to make.
In the end, cost is not just about the price tag. You want a seal that fits your needs and keeps your system running. NBR helps you save money for standard jobs. FKM helps you avoid problems in tough spots. Pick the seal that gives you the best value for your work.
Application Recommendations for NBR and FKM
When to Use NBR Seals
NBR seals are good for most regular jobs. You see them in many machines. They work well in hydraulic systems, pumps, and valves at normal heat. NBR is best with oils, fuels, or water. You can use it in farm tools, trucks, and factory machines. If your system does not get very hot or use strong chemicals, NBR is a smart and cheap choice.
Here are some times when NBR works best:
- Standard hydraulic ball valves in mild places
- Sealing jobs with mineral oils or fuels
- Jobs where you need the seal to bend and move
- When you want to save money
Tip: NBR is great for most simple sealing jobs. It works well and does not cost much.
When to Use FKM (Viton) Seals
Sometimes you need a seal for hard jobs. FKM, also called Viton, is good for tough places. Pick FKM if your system gets very hot, uses strong chemicals, or has ozone. FKM keeps its shape and stops leaks, even when things are rough. You often see FKM in chemical plants, oil refineries, and hot places.
You might use FKM seals for:
- Sealing jobs with strong chemicals or solvents
- High heat jobs up to 200°C
- Places with ozone or lots of weather
- Seals that need to last long and need little care
Note: FKM costs more, but it is worth it for hard jobs. It lasts longer and keeps your machines safe.
Choosing the Right Seal
It is important to pick the right seal for your hydraulic ball valve. You should match the seal to your job. Experts say you should look at these things:
- How hot or cold your system gets
- How much pressure you have
- What chemicals or fluids you use
- How much money you can spend
You can pick from many seal materials, like:
- Acetal
- EPDM
- FKM
- Fluorocarbon
- Nitrile
Viton is good for most jobs without high heat or strong chemicals. For the hardest jobs, you might need PEEK or FFKM. Always check what your system needs before you choose.
If you do not know which seal to use, ask your supplier. They can help you find the best seal for your job.
Practical Tips for Seal Selection
Identifying Seal Materials
You might wonder how to tell NBR and FKM seals apart. The color can give you a clue. NBR seals usually look black or dark brown. FKM seals often come in green, brown, or black, but they feel heavier and stiffer. If you hold both in your hands, FKM feels denser. You can also check the packaging or ask your supplier for the material code. Sometimes, you see “NBR” or “Viton” printed right on the seal.
If you want to be sure, try a quick test. NBR stretches more and snaps back fast. FKM bends less and feels tougher. You can also smell the difference. FKM has a slight chemical scent, while NBR smells more like regular rubber. When in doubt, always ask your supplier. They can help you pick the right seal for your hydraulic ball valve.
Tip: Keep a sample of each seal in your toolbox. You can compare them when you need to replace or check a seal.
Installation Best Practices
Getting the installation right makes your seals last longer. You want to avoid leaks and damage. Here’s a handy table to guide you:
| Installation Practice | Description |
|---|---|
| Material Selection | Choose NBR for oil resistance and FKM for high temperatures and chemical corrosion. |
| Accurate Sizing | Make sure O-Ring dimensions match groove sizes. Aim for a compression ratio of 10%-30%. |
| Temperature Considerations | Use FKM for high heat (up to 200°C). Pick NBR for cold jobs (down to -50°C). |
| Pressure Requirements | Use HNBR or FKM in high-pressure spots to stop deformation and rupture. |
| Proper Installation | Use the right tools. Lubricate O-Rings and seat them gently to avoid nicks or tears. |
| Regular Maintenance | Check O-Rings for wear. Replace them when needed to keep your system sealed. |
You should always clean the groove before putting in a new seal. Dirt or old rubber can cause leaks. Lubricate the seal with a compatible oil or grease. This helps the seal slide into place without twisting. Never use sharp tools that might cut the seal. After installation, check for even seating. If the seal looks pinched or uneven, take it out and try again.
Note: A good installation saves you time and money. It also keeps your hydraulic ball valve working smoothly.
Troubleshooting Seal Failures
Sometimes, seals fail even when you do everything right. You can spot problems early if you know what to look for. Here are some common issues and what you can do:
- Seal extrusion happens when pressure gets too high. The seal pushes out of its groove and leaks start.
- If you see cracks or flat spots, the seal may have faced too much heat or pressure.
- Swelling or softening means the seal met the wrong fluid. Check your fluid compatibility.
- Cuts or nicks often come from rough installation. Always use proper tools and lubricate the seal.
- If you notice leaks after a short time, check for dirt or damage in the groove.
You can fix many problems by replacing the seal and following the best installation steps. Regular checks help you catch issues before they cause big trouble.
Tip: Keep a log of seal changes and failures. This helps you spot patterns and choose better seals next time.
Conclusion
You now know the key differences between NBR and FKM seals for hydraulic ball valves. Here’s a quick look:
| Feature | NBR | FKM (Viton) |
|---|---|---|
| Chemical Resistance | Good for oils | Great for chemicals |
| Temperature Range | Up to 100°C | Up to 200°C |
| Flexibility | Stays soft | Gets stiffer |
| Longevity | Wears faster | Lasts longer |
Pick NBR for everyday jobs and tight budgets. Choose FKM when you need strength in heat or chemicals. Need help? Our team offers expert advice and top-quality seals for your next project.
FAQ
What is the main difference between NBR and FKM seals?
NBR seals work best with oil and normal temperatures. FKM seals handle higher heat and stronger chemicals. You pick NBR for simple jobs. You choose FKM when things get tough.
Can I use NBR seals in high-temperature systems?
No, you should not. NBR seals start to get soft above 100°C. If your system gets hotter, use FKM seals instead. They stay strong up to 200°C.
Are FKM seals worth the extra cost?
Yes, if you need seals for high heat or harsh chemicals. FKM lasts longer and keeps leaks away in tough spots. For regular jobs, NBR saves you money.
How do I know if my seal is NBR or FKM?
Check the color and feel. NBR is usually black and feels soft. FKM can be green, brown, or black and feels heavier. You can also look for markings or ask your supplier.
Do NBR and FKM seals fit the same grooves?
Yes, both types come in standard sizes. You can swap them if the size matches. Always check your system’s needs before changing seal materials.
What fluids can damage NBR seals?
Strong acids, polar solvents, and aromatic hydrocarbons can harm NBR. If you use these fluids, pick FKM instead. It resists more chemicals.
How often should I replace seals in my hydraulic ball valve?
Check your seals during regular maintenance. Replace them if you see cracks, swelling, or leaks. FKM seals usually last longer than NBR.
Can I mix NBR and FKM seals in one system?
You can, but it is not best practice. Each seal type works best in certain conditions. Mixing them may cause leaks or early failure.
