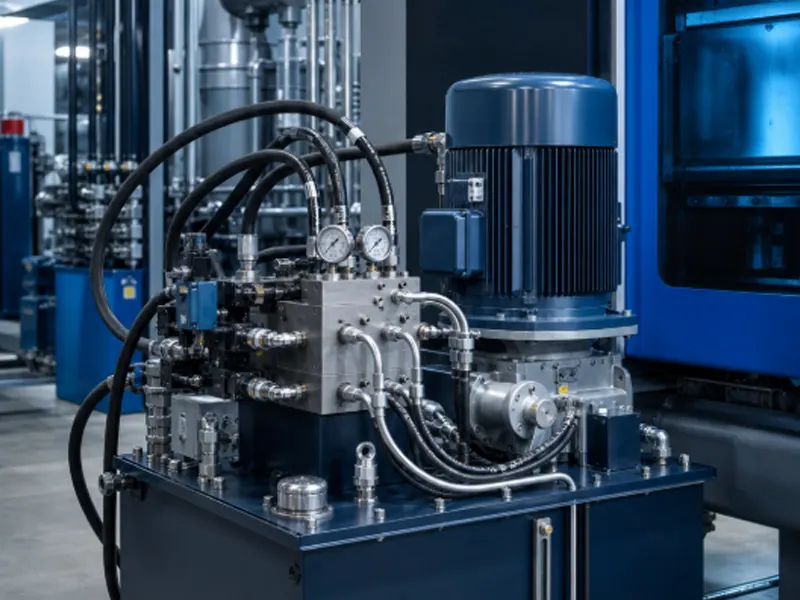

Hydraulic Valves for Hydraulic Power Units
Compact shut-off, check, switching and flow-control valve solutions for hydraulic power packs, pump skids, manifolds and centralized hydraulic systems.
Valves Positioned Around the Hydraulic Circuit
A hydraulic power unit combines the pump, reservoir, filtration, pressure control and distribution components that supply hydraulic power to equipment. Ball, check and flow control valves support isolation, oil direction and maintenance at specific circuit locations.
Correct HPU valve selection should use the hydraulic schematic, not only a product picture. Pressure, flow, pressure drop, mounting and service access all influence the final configuration.
Ball valves isolate pump, accumulator, gauge, test and main pressure lines.
Check valves prevent reverse flow but cracking pressure and rated-flow pressure drop must be reviewed.
Three-way valves can switch or divert lines when their internal port pattern matches the schematic.
Throttle valves regulate oil flow where adjustable actuator speed is required.
Plate and block designs support compact power-pack integration.
Where Valves Are Used in a Hydraulic Power Unit
Isolation and backflow-prevention functions must match pump flow, pressure and startup conditions.
Isolation requires appropriate valve design and approved depressurization procedures for stored energy.
Valve flow area and pressure drop matter because excessive return restriction can affect system performance.
Check and throttle combinations can provide different forward and reverse flow behavior.
Compact shut-off valves help isolate measuring equipment and service points.
Plate-mounted and compact valves reduce external pipework when the interface is correctly matched.
FAQs
What valves are used in a hydraulic power unit?
HPUs may use ball valves, shut-off valves, check valves, throttle valves, flow control valves, pressure valves and directional valves. Chenyang focuses on hydraulic ball, shut-off, check and throttle valve solutions.
Where should a ball valve be installed in an HPU?
Ball valves may be used at selected isolation points such as pump, accumulator, gauge, test and service lines. Position must be confirmed from the schematic and safety procedure.
Why does an HPU need a check valve?
A check valve can prevent reverse flow, protect a pump or support a bypass function. Cracking pressure and pressure drop must match the circuit.
Can a ball valve control actuator speed?
No. Use a throttle or suitable flow control valve for adjustable speed.
What is an accumulator isolation valve?
It isolates a hydraulic accumulator from the circuit. Stored energy remains hazardous, so the complete isolation and depressurization arrangement must follow the system design.
Can HPU valves use custom manifold connections?
Custom plate, port and mounting configurations can be evaluated from drawings, schematics and dimensional requirements.
What information should I provide?
Send the schematic, pressure, flow, oil, temperature, connection, mounting, operation method, quantity and drawing or sample.
