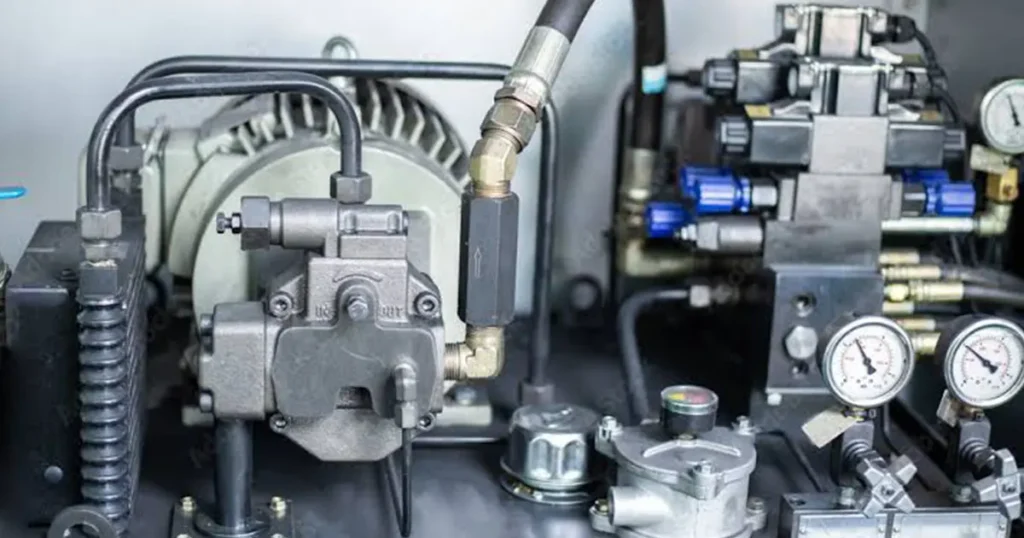

Hydraulic check valves are found in many machines, and knowing how to install check valve is important for proper system function. These valves help control fluid movement and keep your system running smoothly. For instance, you might see them at pump outlets, in accumulator circuits, and in return lines. Here’s a simple table showing where you might encounter them:
| Application Type | Description |
|---|---|
| Pump Outlets | Stop fluid from going back. Keep the pump working well. |
| Accumulator Circuits | Protect accumulators. Block fluid from going back when not used. |
| Return Lines | Hold fluid in return lines when not working. Stop lines from draining. |
| Multi-Pump Systems | Keep active and inactive pumps apart. Manage flow and stop fluid going back. |
If you want to know how to install check valve, you’re in the right place. Whether you need guidance on submersible check valves or other types, this is a great resource for learning how to install check valve correctly.
Key Takeaways
- Always look for the flow direction arrow on the valve before you install it. This helps the fluid move the right way and stops damage to the system.
- Get all the tools you need like wrenches, sealant, and safety gear before you start. Being ready makes installing the valve easier.
- Clean the pipes very well before you put in the valve. Taking out dirt and debris helps stop leaks and makes sure the valve works right.
- After you install the valve, test for leaks by running the system at low pressure. Watch for drips or wet spots near the valve.
- Check your check valve often, about every 6 to 12 months. Finding problems early can save you time and money.
- Do not tighten the fittings too much. This can break the valve and cause leaks. Tighten just enough to make a good seal.
- If you use submersible check valves, make sure they are sealed well to keep water out. This is very important to keep the system working right.
- Always follow the manufacturer’s instructions for putting in and taking care of the valve. This helps keep you safe and makes the valve work its best.
Tools, Materials, and Parameters
Before you start installing a hydraulic check valve, you need to gather the right tools and materials. You also need to check a few important system parameters. This step helps you avoid problems later and keeps your system safe.
Essential Tools and Materials
You do not need fancy tools to install a swing check valve, but you do need the right ones. Here is a quick list to help you get ready:
- Pipe wrenches or adjustable wrenches
- Teflon tape or thread sealant
- Clean rags or cloths
- Pipe cutter or hacksaw (if you need to cut pipe)
- Deburring tool (to smooth pipe edges)
- The correct swing check valve for your system
- Replacement seals or gaskets (if needed)
- Safety gloves and goggles
If you work with submersible check valves, you may also need waterproof sealant and extra care to keep water out of the system.
Confirm Installation Parameters
You want your swing check valve to work well and last a long time. To do that, you must check a few key parameters before you start. Take a look at this table. It shows what you need to confirm:
| Parameter | Description |
|---|---|
| Flow Type | Directional arrows on the valve show you the correct flow path. |
| Pressure | Make sure the valve matches your system’s pressure. |
| Temperature | The valve must handle your system’s temperature range. |
| Volume | The system must have enough volume for the valve to work right. |
| Mounting Position | Some valves need a certain orientation to work best. |
Pressure and Flow Rate
Check your system’s pressure and flow rate. Your swing check valve must match these numbers. If the pressure is too high, the valve could fail. If the flow rate is too low, the valve might not open or close as it should.
Connection Type and Size
Look at your pipes and fittings. Make sure the swing check valve has the right connection type and size. If you use submersible check valves, double-check the size and sealing to keep water out.
Fluid Compatibility and Temperature
Not all swing check valves work with every fluid. Some fluids can damage the valve or seals. Check the temperature range, too. If your system gets too hot or cold, the valve might not work right.
Cracking Pressure
Cracking pressure is the minimum pressure needed to open the swing check valve. If your system does not reach this pressure, the valve will stay closed. Always check this number before you install the valve.
Tip: Always install the swing check valve in the right direction. Look for the arrow on the valve body. If you install it backwards, the valve will not work and could damage your system.
You should also:
- Make sure the valve sits in the right position. Some swing check valves need to be upright to work best.
- If you use a pilot-operated valve, check that the pilot pressure supply is correct.
- Flush your system before you install the valve. This step keeps dirt and debris out of the swing check valve.
Now you have the tools, materials, and knowledge to pick the right swing check valve and get ready for a safe installation.
System Preparation
Before you install a swing check valve, you need to get your system ready. Good preparation helps you avoid leaks, damage, and safety risks. Let’s walk through the steps you should follow.
Safety Precautions
Safety comes first when you work with hydraulic systems. You want to protect yourself and your equipment. Always read the operating instructions for your swing check valve. Never remove safety labels from the valve or any part of your system. Wear gloves and goggles to keep your hands and eyes safe. Make sure everyone working with you knows how to handle hydraulic parts. If you see leaks, low oil, or worn hoses, stop and fix them before you start. Never try to install a swing check valve if the system needs repairs.
Check the oil level in your reservoir. Use the right type of hydraulic oil for your swing check valve. If your system has a heat exchanger or a fluid temperature alarm, make sure they work. These tools help keep the temperature safe. Always look for hidden energy in the system. You want to control all moving parts and bring the system to a zero energy state before you touch anything.
Tip: Never take apart a swing check valve or any hydraulic part if there is still pressure or load in the system. This step keeps you safe from sudden fluid bursts.
Shut Off and Drain System
You need to shut off the power before you install a swing check valve. Turn off the pump and lock out the power source. This step stops the system from starting by accident. Next, drain the fluid from the lines where you will work. Open the drain valves slowly. Let the pressure drop to zero. If you work with submersible check valves, make sure you keep water away from the open pipes. Use a bucket or tray to catch any leftover fluid. This step keeps your work area clean and safe.
Clean and Inspect Piping
Clean pipes help your swing check valve work better. Dirt and debris can block the valve or cause leaks. Take time to check every part before you install the valve.
Check Valve Body and Seals
Look at the swing check valve body. Make sure there are no cracks or dents. Check the seals for damage or wear. If you see any problems, replace the seals before you install the valve. Good seals stop leaks and help your swing check valve last longer.
Inspect Threads and Flanges
Check the threads and flanges on your pipes and the swing check valve. Threads should look clean and sharp. Flanges should be flat and smooth. If you see rust, dirt, or damage, clean or fix them. Good threads and flanges help you get a tight seal. This step is very important for both swing check valve and submersible check valves.
Remove Debris and Plugs
Use a clean rag to wipe the inside of the pipes. Remove any plugs or caps from the swing check valve. Look for small bits of metal, dirt, or old sealant. Even a little debris can stop your swing check valve from working right. If you find anything, clean it out before you move on.
Note: Clean pipes and fittings help your swing check valve open and close without trouble. You want the inside of your system as clean as possible.
Now your system is ready for the next steps. Careful preparation makes installing a swing check valve much easier and safer.
Choose Installation Location
Picking the right spot for your swing check valve makes a big difference. You want your hydraulic system to work well and last a long time. If you put the swing check valve in the wrong place, you might get leaks or lose pressure. Let’s look at the best spots for your swing check valve.
Common Locations
You will find swing check valves in many parts of a hydraulic system. These valves let fluid move one way and stop it from going back. This keeps your system safe and running right. Here are some common places where you should install a swing check valve:
Pump Outlet
Put a swing check valve at the pump outlet. This stops fluid from flowing back into the pump when it is off. You protect your pump and keep it ready for the next start. If you use submersible check valves, this spot is also important because you want to keep water out of the pump.
Cylinder Lines
You can use a swing check valve in cylinder lines. This keeps the cylinder in place when you stop the flow. The valve holds the load steady and stops it from moving backward. You get better control and safety.
Return Lines
Install a swing check valve in return lines. This keeps fluid in the lines when the system is not running. You stop the lines from draining and keep air out. Your system starts up faster and works better.
Accumulator Circuits
Swing check valves work well in accumulator circuits. They block fluid from going back into the pump or tank. This keeps the stored energy in the accumulator until you need it. You get smooth and steady pressure.
Near Actuators
You can put a swing check valve near actuators. This helps control the movement and keeps the actuator in the right spot. If you use submersible check valves, make sure you seal the area well to stop leaks.
Tip: Always check the arrow on the swing check valve. The arrow shows you the right flow direction. If you install it backwards, the valve will not work.
Accessibility for Maintenance
You want to reach your swing check valve easily for checks and repairs. If you put the valve in a tight spot, you will have a hard time fixing leaks or changing seals. Here is a quick table to help you remember what to look for:
| Factor | Description |
|---|---|
| Sufficient clearance | Leave enough space around the swing check valve for tools and hands. |
| Proper installation techniques | Use good methods so you can get to the valve later. |
| Regular maintenance access | Make sure you can check and fix the swing check valve without trouble. |
You can also add unions near the swing check valve. This lets you take out the valve without cutting pipes. You save time and keep your system clean. Always plan for easy access, even if you use submersible check valves. Good planning makes your work safer and faster.
Confirm Flow Direction
You want your hydraulic system to work right every time. One of the most important steps is making sure you install your swing check valve in the correct flow direction. If you skip this step, you might face big problems later.
Identify Arrow on Valve Body
When you look at a swing check valve, you will see an arrow or a flow direction symbol on the valve body. This arrow shows you which way the fluid should move. You need to follow this arrow every time you install a valve. If you use submersible check valves, you will also find a flow direction mark. It helps you keep water moving the right way and stops leaks.
- Look for the arrow or symbol on the valve body.
- Check the valve symbol in your process flow diagram (P&ID) if you have one.
- Make sure the arrow matches the direction you want the fluid to go.
Tip: Never guess the flow direction. Always use the arrow or symbol to guide you.
Inlet and Outlet Ports
You need to know which port is the inlet and which is the outlet. The inlet is where the fluid enters the swing check valve. The outlet is where the fluid leaves. If you mix these up, your valve will not work. Most swing check valves have clear markings. Sometimes, you will see “IN” and “OUT” stamped on the valve. If you use submersible check valves, check the markings before you seal the pipes.
Here’s a quick checklist to help you:
- Find the “IN” and “OUT” marks on the valve.
- Match the inlet to the upstream pipe.
- Connect the outlet to the downstream pipe.
- Double-check before you tighten the fittings.
Issues with Incorrect Direction
If you install a swing check valve backwards, you will run into trouble. The fluid will not flow as you want. You might see reverse flow problems. This can make your system less efficient. Sometimes, you will notice excessive pressure drop. That means the valve restricts the flow and your system loses power. Valve chatter can happen, too. The valve will make noise and shake because the flow is unstable. This can hurt your system and make it unsafe.
- Reverse flow can cause system inefficiencies.
- Excessive pressure drop may show up if the valve restricts flow.
- Valve chatter can lead to unsafe conditions.
Note: Always check the flow direction before you install a swing check valve. This step keeps your system safe and working well.
If you follow these steps, you will avoid mistakes and keep your hydraulic system running smoothly. Take your time, check the markings, and make sure your swing check valve is ready for action.
How to Install Check Valve: Step-by-Step
Prepare Tools and Components
Before you start, you need to get everything ready. This step makes the whole process smoother and safer. If you want to know how to install check valve the right way, always begin by gathering your tools and parts. Here’s a simple checklist to help you:
- Grab your pipe wrenches or pliers. These help you tighten and loosen fittings.
- Pick up some Teflon tape or pipe joint compound. You’ll use these to seal the threads.
- Get gasket material if your system needs it.
- Put on your safety gear—gloves and goggles protect you from fluid splashes and sharp edges.
- Make sure you have the correct check valve for your job.
Tip: Always double-check that you have the right size and type of valve before you start. If you’re working with submersible check valves, make sure your sealant is waterproof.
Safety comes first. Wear your gloves and goggles before you touch anything. Make sure the hydraulic system is off and has no pressure left inside. Drain the lines where you’ll work. If you skip this, you could get hurt or make a mess. Always follow the manufacturer’s instructions for how to install check valve. This helps you avoid mistakes and keeps your system safe.
Cut and Prepare Pipe
Now you’re ready to work on the pipes. If you need to cut the pipe, use a pipe cutter or hacksaw. Mark the spot where you want to install the check valve. Cut the pipe straight so you get a good seal later. A crooked cut can cause leaks or make the valve hard to fit.
After you cut the pipe, clean the ends with a rag. Wipe away any dirt, oil, or metal shavings. If the pipe ends are rough, use a deburring tool to smooth them out. This step helps the valve fit better and stops leaks. Always check the pipe for damage. If you see cracks or heavy wear, replace that section before you move on.
Note: Make sure the pipe size matches your check valve. If the pipe is too big or too small, the valve won’t seal right.
If you want to know how to install check valve without problems, always start with clean, straight, and dry pipes. For best results, rinse the pipe with water and let it dry before you install anything.
Apply Thread Sealant or Teflon Tape
Sealing the threads is a key part of how to install check valve. If you skip this step or do it wrong, you’ll end up with leaks. Most people use Teflon tape, but you can also use a pipe joint compound. Here’s how you do it:
- Wrap Teflon tape around the male threads of the pipe. Go in a clockwise direction. This way, the tape won’t unravel when you screw on the valve.
- Use just enough tape to cover the threads. Don’t use too much, or you might block the flow.
- If you use a liquid sealant, spread a thin, even layer on the threads. Don’t let it drip or glob up.
- Make sure your sealant works with hydraulic fluid. Some sealants break down if they touch oil or high pressure.
- For high-vibration systems, you might need extra sealing. Check the manufacturer’s advice.
Tip: Always check for leaks after you finish. If you see any, tighten the fitting a little more or add more sealant.
When you learn how to install check valve, you’ll see that sealing the threads is one of the most important steps. Take your time and do it right. This will help your check valve last longer and keep your system running smoothly.
Align and Install Valve
Now you’re ready to put the check valve in place. This step is all about getting the alignment right so your system works smoothly and doesn’t leak. Start by looking for the flow direction arrow on the valve body. You want this arrow to match the direction your fluid should move. If you get this wrong, the valve won’t work, and you might even damage your system.
Before you install, check the area where the valve will go. Make sure the pipes are straight and clean. You need enough space around the valve for your tools and hands. If you’re working with submersible check valves, double-check that the spot is dry and easy to seal.
Here’s a handy table to help you remember what to check:
| Aspect | Guidance |
|---|---|
| Flow Direction | Match the valve’s arrow with the system’s flow. |
| Straight-run Requirements | Place the valve on a straight pipe—at least 5 pipe diameters before and 10-15 after. |
| Orientation | Most valves work best horizontally. If vertical, make sure fluid flows up. |
| Inspect Components | Clean and check the valve and ports for dirt or damage. |
| Site Assessment | Make sure pipes line up and there’s enough room. |
| Upstream Layout | Pipes before the valve should be clean and straight. |
| Downstream Layout | Leave enough straight pipe after the valve for smooth flow. |
When you set the valve in place, line up the threads or flanges with the pipe ends. If you have a swing check valve, keep the hinge vertical so the disc can swing open and closed without sticking. Hold the valve steady and make sure it sits flat against the pipe or fitting. Don’t force it if it feels crooked—take a moment to realign everything.
Tip: Always double-check the flow arrow before you tighten anything. It’s easy to get turned around, especially if you’re working in a tight spot.
Tighten Fittings (Follow Manufacturer Specs)
Once the valve is lined up, it’s time to tighten the fittings. This part is important because you want a good seal, but you don’t want to damage the valve or the threads. Start by hand-tightening the nuts or couplings. This helps you feel if the threads are lined up right.
Next, use your wrench to snug the fittings. Don’t over-tighten! Too much force can crack the valve or strip the threads. Most manufacturers give you a torque spec—if you have it, use a torque wrench to get it just right. If you don’t have a spec, tighten until it feels firm, then give it a small extra turn.
Here are some quick tips for tightening:
- Always use two wrenches—one to hold the valve steady, one to turn the fitting.
- Stop if you feel resistance that doesn’t seem right. Back off and check for cross-threading.
- If you see sealant squeezing out, you’ve probably used enough.
- For flanged valves, tighten bolts in a crisscross pattern to spread the pressure evenly.
Note: Over-tightening is a common mistake. It can crush seals and cause leaks later. Take your time and follow the instructions.
Remove Trapped Air
After you install and tighten the valve, you need to get rid of any air trapped in the system. Air pockets can make your hydraulic system noisy, slow, or even unsafe. Here’s a simple way to bleed the air out:
- Crank the machine a few times without starting it all the way. This helps the hydraulic charge pump move fluid and lets you check for leaks.
- Start the system and let it idle at low speed. Watch for leaks around the new valve.
- After a couple of minutes, if everything looks good, slowly move the hydraulic controls. This helps push air out of the lines.
- Don’t run the system at full power right away. Let it run gently for about 10 minutes, or even up to 30 minutes if you can. This gives the air time to escape.
If you hear strange noises or see bubbles in the fluid, keep bleeding the system until things settle down. Always check the fluid level after you finish. Add more if you need to.
Tip: Removing trapped air keeps your system running smooth and quiet. It also helps your new check valve last longer.
Pressure Test and Check for Leaks
You’ve installed your check valve and removed the trapped air. Now it’s time to make sure everything works and nothing leaks. Pressure testing is a must. This step helps you catch problems before they turn into big messes.
Here’s how you can pressure test your hydraulic check valve and check for leaks:
- Start by closing all drain valves and making sure the system is ready for testing.
- Open the upstream isolation valve just a little. Let fluid fill the pipe slowly. This helps you avoid a sudden rush of pressure that could damage your new valve.
- Run the system at low pressure first. Watch the check valve and all the fittings closely. Look for any drips or wet spots.
- If everything looks dry, slowly increase the pressure to your system’s normal operating level. Take your time. Don’t rush this part.
- Keep an eye on the check valve as the pressure goes up. Listen for strange noises or hissing sounds.
- Once you reach full pressure, check the valve’s function. Make sure it opens and closes as it should.
At each stage of the pressurization process, you need to do a careful leak inspection. Focus on the joints and flanges around your check valve. For liquid systems, leaks usually show up as drips or small streams. Use a flashlight to check all the way around each flange, especially underneath. That’s where leaks like to hide.
Here are some safety tips to remember during your pressure test:
- Never open the main isolation valve too quickly. A fast rush of fluid can slam your system and cause damage.
- Always vent any trapped air before you go to full pressure. Air pockets can make the system act up or even cause dangerous surges.
- If you see a leak, stop the test right away. Lower the pressure and fix the problem before you try again.
You might use these steps for all types of hydraulic check valves, including submersible check valves. The process helps you spot leaks early and keeps your system safe.
If you don’t find any leaks and the valve works as it should, you’ve done a great job. Your hydraulic system is now ready for action!
Connection Types
Threaded Check Valves
You will see threaded check valves in many small hydraulic systems. These valves have threads on each end, so you can screw them right onto the pipe or fitting. If you want to install swing check valves quickly, threaded types make the job simple. You do not need special tools or welding. Just wrap the threads with sealant, line up the valve, and tighten it down.
Here’s a table to help you compare the advantages and disadvantages of threaded check valves:
| Advantages | Disadvantages |
|---|---|
| Easy to install and disassemble | Sealing reliability is relatively low |
| Relatively low cost | Not suitable for frequent disassembly |
| Suitable for small size (usually DN50 or less), medium and low pressure occasions | In vibration or temperature change occasions, easy to leak |
Threaded check valves work best when you have small pipes and low to medium pressure. If your system shakes a lot or gets hot and cold, you might see leaks. You should check the threads and seals often. When you install swing check valves with threads, always follow the flow arrow and do not over-tighten.
Flanged Check Valves
Flanged check valves look bigger and heavier than threaded types. You will find them in larger systems where the pipes carry more fluid or higher pressure. Each end of the valve has a flat flange with holes for bolts. You line up the flanges, put in a gasket, and bolt them together. This setup gives you a strong, leak-free connection.
If you need to install swing check valves in a spot where you might take them out later, flanged types make it easier. You just unbolt the flanges and lift the valve out. Flanged connections also handle vibration and temperature changes better than threads. You will see these valves in factories, water plants, and big machines.
Tip: Always use the right gasket and tighten the bolts in a crisscross pattern. This helps you get a good seal and keeps the valve from leaking.
Cartridge Check Valves
Cartridge check valves fit inside hydraulic manifolds. You do not see them on the outside of the pipes. Instead, you drop the cartridge into a special hole in the manifold block. These valves help you save space and keep your system neat.
Here’s how cartridge check valves work in hydraulic manifolds:
- They manage the on and off flow inside the hydraulic circuit.
- Each cartridge has a spool that controls the flow between two ports, called A and B.
- The control port lets you change the valve’s position using hydraulic pressure, so you get flexible control.
If you want to install swing check valves in a compact system, cartridge types are a smart choice. They make repairs and upgrades easy. You just pull out the old cartridge and pop in a new one. You do not need to cut pipes or use big wrenches.
Note: Always check the manifold for dirt before you install a cartridge valve. Clean parts help the valve last longer and work better.
Inline Check Valves
Inline check valves are a popular choice in many hydraulic systems. You might see them in places where you want a simple, straight-through design. These valves fit right into the line, so the fluid flows in one end and out the other. You don’t need to worry about making big changes to your piping. Just cut the pipe, clean the ends, and install the valve in line with the flow.
You’ll like inline check valves because they are easy to use and don’t take up much space. They work well in tight spots where you can’t fit a bulky valve. You can find them in both small and large systems. They help keep your hydraulic fluid moving in the right direction and stop it from flowing backward.
Let’s look at some key features of inline check valves. This table breaks down what makes them special:
| Feature | Description |
|---|---|
| Adjustable Spring Force | You can adjust the spring to set the cracking pressure. This means you control when the valve opens. |
| Rapid Response and Sealing | These valves react fast and seal tight, even if the pressure changes quickly. |
| Positive Closure | The spring makes sure the valve closes every time, even if the reverse pressure is low. |
| Pressure Rating and Flow Capacity | You need to pick a valve that matches your system’s highest pressure and flow. Always check the specs. |
| Material Selection | The valve’s material must match your hydraulic fluid. This keeps the valve working longer. |
| Installation Considerations | Always follow the flow arrow on the valve. Put the valve in the right direction for best results. |
| Maintenance and Serviceability | Some inline valves have removable cartridges. You can service them without taking out the whole valve. |
You might wonder why adjustable spring force matters. If you need the valve to open at a certain pressure, you can set it just right. This helps your system work smoothly and stops problems before they start.
Tip: Always check the flow direction arrow before you install an inline check valve. If you put it in backwards, the valve won’t work, and you could damage your system.
Inline check valves also give you quick response. When the pressure changes, the valve opens or closes right away. This keeps your system safe and helps prevent leaks. The spring inside the valve makes sure it closes tight, even if there isn’t much pressure pushing back.
When you pick an inline check valve, look at the pressure rating and flow capacity. You want a valve that can handle your system’s highest pressure, plus a little extra for safety. Don’t forget to match the valve’s material to your hydraulic fluid. Some fluids can damage certain materials, so always double-check.
Maintenance is simple with many inline check valves. Some designs let you pull out the inside cartridge for cleaning or repair. You don’t have to remove the whole valve from the line. This saves you time and keeps your system running longer.
If you want a valve that’s easy to install, quick to react, and simple to maintain, inline check valves are a smart choice for your hydraulic system.
Testing and Inspection
Check for Leaks
After you install your check valve, you want to make sure there are no leaks. Leaks can cause big problems in your hydraulic system. You can use a few simple methods to check for leaks and keep your system safe.
- Do a visual inspection. Look closely at all the joints, especially around flanges and threaded connections. If you see any drips or wet spots, you might have a leak.
- Try using a soap bubble solution. Dab a little soapy water on the joints. If you see bubbles forming, air or fluid is escaping.
- For a quick check, you can use compressed air. This method helps you spot leaks fast, but it works best for factory inspections or when you need a quick answer.
- Some people test for internal leaks by measuring if fluid sneaks past the valve’s sealing surface when it should be closed.
You want your system to stay dry and clean. If you find a leak, fix it right away. High quality check valves help prevent leaks, but you still need to check every time you finish an installation.
Verify Pressure and Cracking Pressure
You need to make sure your check valve opens at the right pressure. This is called the cracking pressure. If the valve opens too soon or too late, your system won’t work right.
Here’s a simple way to check:
- Release the relief valve all the way.
- Turn on the hydraulic pump. Watch the outlet of the valve. There should be no flow yet.
- Slowly close the relief valve. Keep an eye on the outlet. When you see a small flow (about five drops per second), look at the pressure gauge.
- The number on the gauge shows you the cracking pressure.
You can also test in a controlled circuit. Isolate the valve, put a pressure gauge on the load side, and slowly raise the pressure. When the valve just starts to open, that’s your cracking point. High quality check valves will have a consistent cracking pressure, so you know your system will work as planned.
Test Reverse Sealing
You want your check valve to stop fluid from flowing backward. This is called reverse sealing. To test this, set up a simple test loop:
- Build a test loop with a hydraulic power source, a relief valve, a shut-off valve, the check valve, a pressure gauge, a thermometer, and a flow meter or measuring cup.
- Loosen the relief valve before you start. Adjust the pump to the right testing pressure.
- Let the system run until any leak oil stabilizes. Then, measure the leakage using a measuring cup and stopwatch.
For a quick check, you can use compressed air, but this is not good for formal testing. Always make sure your valve holds tight in reverse. If you see too much leakage, you may need to replace the valve or check the seals.
Monitor for Noise and Vibration
You want your hydraulic system to run quietly and smoothly. After you install a check valve, listen and feel for any strange sounds or shaking. Noise and vibration can tell you if something is wrong. Sometimes, a check valve makes a clicking or rattling sound. You might feel the pipes shake or notice the valve moving. These signs mean you need to check your installation.
Here’s a simple checklist to help you spot problems:
- Listen for unusual sounds like banging, humming, or rattling near the valve.
- Touch the pipes and fittings. Feel for vibration or shaking.
- Watch the valve while the system runs. Look for movement or bouncing.
- Check for repeated noises when the pump starts or stops.
Tip: If you hear a loud noise or feel strong vibration, stop the system and check the valve right away. You might have installed the valve backwards or tightened it too much.
Noise and vibration can happen for many reasons. Maybe the valve is not aligned with the pipe. Sometimes, the flow rate is too high or too low. You might have air trapped in the system. If you use a swing check valve, the disc inside can chatter if the flow is unstable.
Here’s a quick table showing common causes and solutions:
| Cause | What to Do |
|---|---|
| Valve installed backwards | Check the flow arrow and reinstall |
| Loose fittings | Tighten the connections |
| Air in the system | Bleed the air out |
| Wrong valve size | Replace with correct size |
| High flow velocity | Slow down the flow |
You can fix most problems by checking the valve’s direction, tightening the fittings, or bleeding the air. If the noise keeps happening, you might need to pick a different valve or call a professional.
Note: Quiet and steady operation means your check valve works well. Always check for noise and vibration after you install a valve.
Confirm System Operation
Now you want to make sure your hydraulic system works as planned. Start the pump and let the fluid flow through the check valve. Watch the pressure gauge and flow meter. Make sure the valve opens when the pressure rises and closes when the pressure drops.
Here’s what you should check:
- The valve opens at the right cracking pressure.
- Fluid flows in the correct direction.
- The valve closes when the flow stops or reverses.
- No leaks appear at the joints or body.
- The system starts and stops smoothly.
Tip: If you see slow response or the valve sticks, check for dirt or debris inside. Clean the valve and try again.
You can test the system by running it at low speed first. Watch for any problems. If everything looks good, increase the speed and pressure. Keep an eye on the valve and listen for any new noises.
If your system uses multiple check valves, check each one. Make sure all valves work together. If you find a problem, fix it before you use the system for real work.
A well-installed check valve keeps your hydraulic system safe and reliable. Regular checks help you catch problems early and keep your equipment running longer.
Common Mistakes to Avoid
Backwards Installation
You might think installing a check valve is simple, but putting it in backwards is one of the most common mistakes. If you do this, your hydraulic system will not work as planned. The fluid will not flow the right way, and you could even damage your equipment. Always look for the arrow on the valve body. This arrow shows you the correct flow direction. If you skip this step, you risk blocking the flow or causing leaks.
- Check for directional arrows on the valve body before you start.
- Match the arrow with the direction you want the fluid to move.
- Double-check your work before tightening any fittings.
Tip: Never guess the flow direction. Take a moment to find the arrow or symbol. This small step saves you a lot of trouble later.
Over-Tightening or Excess Sealant
You want a tight seal, but using too much force or too much sealant can cause big problems. Over-tightening can damage the valve and the fittings. If you use too much sealant, it might get inside the valve and block the moving parts. Here’s a quick table to show what can go wrong:
| Consequence | Description |
|---|---|
| Valve Body Deformation/Cracking | Too much torque can bend or crack the valve body. This damage is often permanent. |
| Plate Jamming or Difficult Operation | If the valve body bends, the internal plate can get stuck. The valve may not open or close. |
| Seal Failure | Uneven pressure can break the seal between the valve and the pipe, causing leaks. |
| Damage to Seats | Extra pressure can crush or deform the soft seats inside the valve, leading to leaks. |
You might also notice that over-tightening can distort the threads and weaken the connection. Sometimes, the fitting will crack, and you will need to replace the whole part.
- Tighten fittings just enough to make a good seal.
- Use only the amount of sealant recommended by the manufacturer.
- Avoid forcing the valve if it does not fit easily.
Note: If you see sealant squeezing out or feel strong resistance, stop and check your work. Too much force can do more harm than good.
Contaminated Lines
Dirt and debris in your hydraulic lines can ruin a new check valve fast. Even a small piece of grit can stop the valve from sealing or moving. You might see leaks, slow response, or even total valve failure. Always clean the pipes before you install a check valve. Wipe the inside with a clean rag and remove any old sealant or metal shavings.
- Flush the system before installation.
- Inspect the valve and pipes for dirt or debris.
- Replace any damaged or dirty seals.
Tip: Clean lines help your check valve last longer and work better. Never skip this step, even if the pipes look clean.
If you avoid these common mistakes, you will have a much smoother installation and a more reliable hydraulic system. Take your time, follow each step, and your check valve will work just as it should.
Mismatched Connections or Sizing
You might think all pipes and valves fit together, but that’s not true. If you pick the wrong size or connection type, your check valve won’t work right. This mistake can cause leaks, weak seals, or even damage your hydraulic system. Let’s break down why matching connections and sizing matters.
Imagine you try to force a big valve onto a small pipe. You’ll struggle to get a tight seal. The valve might wobble or leak. If you use a small valve on a big pipe, the flow won’t match. Your system could lose pressure or run slow. Sometimes, you’ll see odd adapters or couplings used to make things fit. These quick fixes often lead to trouble later.
Here’s a simple table to help you spot mismatched connections:
| Problem | What You Might See | Why It Matters |
|---|---|---|
| Wrong pipe size | Valve doesn’t fit, leaks appear | Poor sealing, weak flow |
| Different thread types | Threads won’t match, hard to tighten | Damaged threads, loose joints |
| Odd adapters | Extra fittings, messy layout | More leak points, weak spots |
You want your check valve to fit snugly. Always check the pipe size and thread type before you buy a valve. Look at the specs on the valve body. If you see “NPT” or “BSP,” that tells you the thread type. Don’t mix them up. If you use flanged valves, make sure the bolt pattern matches your pipe flange.
Tip: If you’re not sure about sizing, grab a tape measure. Measure the pipe’s outside diameter and compare it to the valve specs. Double-check the thread pitch and type. This step saves you headaches later.
You should also think about the flow rate. If your valve is too small, it will choke the flow. If it’s too big, you might waste money and space. The right size keeps your system running smooth.
Here’s a quick checklist for avoiding mismatched connections:
- Match the valve size to the pipe size.
- Check the thread type and pitch.
- Look for the right flange pattern.
- Avoid using too many adapters.
- Read the manufacturer’s specs.
If you follow these steps, you’ll get a tight, leak-free fit. Your hydraulic system will work better and last longer. Don’t rush this part. Take your time and make sure everything lines up just right.
Maintenance and Inspection
Routine Checks
You want your hydraulic system to stay reliable. Regular checks help you catch problems early. Start by looking at your swing check valve every month. Check for leaks, dirt, or loose fittings. Listen for strange noises when the system runs. If you hear rattling or see drips, you need to investigate. Use a flashlight to inspect the valve body and connections. Make sure the flow arrow still points in the right direction. If you spot anything unusual, write it down in your maintenance log.
Here’s a simple checklist for routine swing check valve maintenance:
- Inspect valve body for cracks or dents
- Check for leaks around fittings
- Listen for noise or vibration
- Make sure flow direction arrow is visible
- Test valve operation at low and high pressure
Tip: Keep a log of your inspections. This helps you track changes and spot patterns.
Signs of Wear or Leaks
You need to know what trouble looks like. Swing check valves can show signs of wear or leaks after months of use. Look for wet spots under the valve. If you see rust or corrosion, the valve might need attention. Sometimes, the valve disc sticks or moves slowly. This can cause poor sealing and let fluid leak backward.
Here’s a table to help you spot signs of wear or leaks:
| Sign | What It Means |
|---|---|
| Wet spots | Possible leak |
| Rust or corrosion | Moisture damage |
| Slow disc movement | Internal wear |
| Valve chatter | Loose or damaged parts |
| Fluid on threads | Seal failure |
If you notice any of these signs, plan for swing check valve maintenance soon. Don’t wait until the problem gets worse.
Note: Early action saves you money and keeps your system safe.
Cleaning and Seal Replacement
You want your swing check valve to last. Cleaning and replacing seals are key steps in swing check valve maintenance. Shut down the system and drain the fluid before you start. Remove the valve and wipe off dirt and debris. Use a soft brush to clean inside the valve body. Check the seals for cracks or wear. If you see damage, replace the seals with new ones from the manufacturer.
Follow these steps for cleaning and seal replacement:
- Shut off system and drain fluid
- Remove valve from line
- Clean valve body and disc
- Inspect and replace seals
- Reinstall valve and check for leaks
Tip: Always use the right seal material for your hydraulic fluid. This prevents early failure.
After cleaning and seal replacement, test the valve to make sure it works. If you follow these steps, your hydraulic system will stay reliable and safe.
Re-Test Valve
You’ve cleaned your check valve and replaced the seals. Now, you need to make sure everything works as it should. Re-testing the valve is a key step. You don’t want to skip this part. If you do, you might miss leaks or other problems that could hurt your hydraulic system.
Start by putting the valve back into the line. Make sure you follow the flow direction arrow. Tighten the fittings just enough to get a good seal. Don’t over-tighten. If you use too much force, you can damage the valve or crush the new seals.
Next, fill the system with hydraulic fluid. Let the fluid move slowly through the pipes. Watch for drips or wet spots around the valve. If you see any leaks, stop and fix them right away.
Here’s a simple checklist to help you re-test your valve:
- Check for leaks: Look at all the joints and seals. Use a flashlight if needed.
- Test valve operation: Run the pump at low speed. Make sure the valve opens and closes as the fluid moves.
- Monitor cracking pressure: Watch the pressure gauge. The valve should open at the right pressure. If it opens too soon or too late, you may need to adjust or replace it.
- Listen for noise: Pay attention to any rattling or humming. These sounds can mean the valve isn’t seated right.
- Feel for vibration: Touch the pipes near the valve. If you feel shaking, check the alignment and fittings.
Tip: If you hear strange noises or see bubbles in the fluid, bleed the air from the system. Air pockets can make the valve act up.
You can use a table to track your results:
| Test Step | What to Look For | Action Needed |
|---|---|---|
| Leak Check | Drips, wet spots | Tighten or reseal |
| Operation Test | Smooth opening/closing | Clean or realign |
| Pressure Test | Correct cracking point | Adjust or replace |
| Noise/Vibration | Quiet, steady operation | Reinstall or inspect |
If everything looks good, run the system at full speed for a few minutes. Watch the valve and listen for any changes. If you spot a problem, fix it before you put the system back to work.
Re-testing your check valve keeps your hydraulic system safe and reliable. You catch issues early and avoid costly repairs. Don’t rush this step. Take your time and make sure your valve works like new.
Conclusion
You want your hydraulic check valve to work well and last long. Always look for the flow direction arrow before you install it. Clean the pipes so no dirt gets inside. Check the valve to make sure it is not damaged. Do not forget to test for leaks after you put it in. Even small leaks can cause big problems later. Look at your valve every few months to make sure it is working. If you find any issues, fix them right away. If your system is special or tricky, ask a professional manufacturer for help.
| Key Points | Description |
|---|---|
| Confirm Flow Direction | Follow the arrow on the valve body. |
| Clean Pipeline | Remove debris before installation. |
| Leak Test | Test for leaks after installation. |
| Routine Inspection | Check sealing and operation every 6–12 months. |
FAQ
How do I know which way to install the check valve?
Look for the arrow on the valve body. That arrow shows you the correct flow direction. If you follow it, your system will work as it should.
Can I use Teflon tape on all hydraulic check valve threads?
Yes, you can use Teflon tape on most threaded connections. Wrap it around the threads to help prevent leaks. Don’t use too much tape.
What happens if I install the check valve backwards?
If you install it backwards, fluid won’t flow the right way. Your system might not work, and you could damage the valve. Always check the arrow before tightening.
How often should I inspect my hydraulic check valve?
You should check your valve every 6–12 months. Look for leaks, noise, or signs of wear. Regular inspections help you catch problems early.
Do I need to drain the system before installing a check valve?
Yes, you need to drain the system first. This keeps you safe and prevents fluid spills. Always make sure there’s no pressure in the lines before you start.
What’s the best way to test for leaks after installation?
Start the system at low pressure. Watch for drips or wet spots around the valve. You can also use soapy water to spot bubbles where leaks might appear.
Can I install a check valve vertically?
You can install some check valves vertically. Make sure the fluid flows upward through the valve. Check the manufacturer’s instructions for your specific valve.
